KSD / KSDK - side channel pump (self-priming) for high pressures

  • The section shown here is from a KSD Apollo side channel pump. The pump, motor, and base plate are all painted blue.

    KSD01

  • Painted KSD side channel pumps in typical Apollo blue color packed in a wooden box lined with black foil.

    KSD02

  • Close-up of a KSD multistage side channel pump, set up on an assembly table in the Apollo production hall, ready for final hydraulic testing.

    KSD03

Horizontal, self-priming side-channel pump with the ability to pump gas together with the liquid, sectional casing design. Side channel pumps of this series are marked by а compact construction and good priming characteristics.

Operation limits KSD / KSDK

Q (m³/h) 35
H (m) 340
P (bar) 40
T (° C) + 250

Application Industries

A white symbolic image with a power plant and smokestack represents energy generation. The background is blue.
A white symbolic image showing a plant with three leaves around which an electrical cable with a plug is wrapped represents the renewable energy industry. The background is blue.
A white symbolic image depicting a refinery with an oil tank, steel tower, and flame represents the refinery, oil, and gas industry. The background is blue.
A blue symbol image with factories symbolises general industry.
A blue symbol with a chemical compound represents the chemical industry.
The fertiliser industry is represented by a blue symbol showing a pile of earth with a plant growing out of it and fertiliser spread over it.

Side channel pumps of the KSD series are used for the delivery of clean and troubled liquids without abrasion components. The pumps of KSD series have been developed for heavy duty application in all fields of industry:

  • in the chemical and petrochemical industry
  • in general process engineering
  • in the machine building industry and apparatus construction

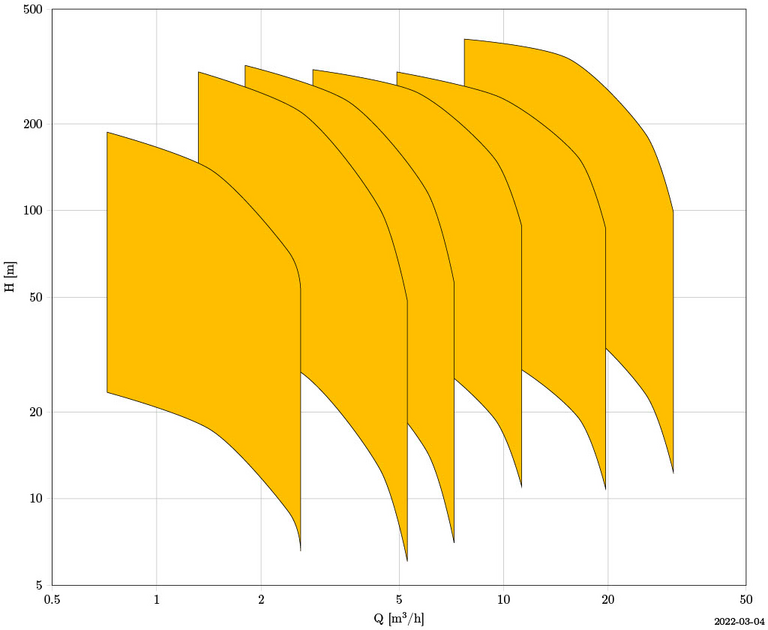

KSD: Side channel pump - characteristic curve field shows pressure curve and flow rate in different operating states.
KSD - characteristic curve
  • horizontal, self-priming side-channel pump with the ability to pump gas together with the liquid, sectional casing design according to DIN EN 734
  • compact design
  • good suction behaviour
  • suction and discharge branches are positioned radially vertically to the top
  • round flange version, connection dimensions according to DIN EN 1092-1 / PN40
  • two external grease lubricated grooved ball bearings
  • stuffing box single/double
  • mechanical seal according to DIN EN 12756
  • double-acting mechanical seal
  • ductile iron
  • grey cast iron
  • stainless steel
