KRI / KRIL (OH3) - vertical, single-stage, radially split process pump of inline version

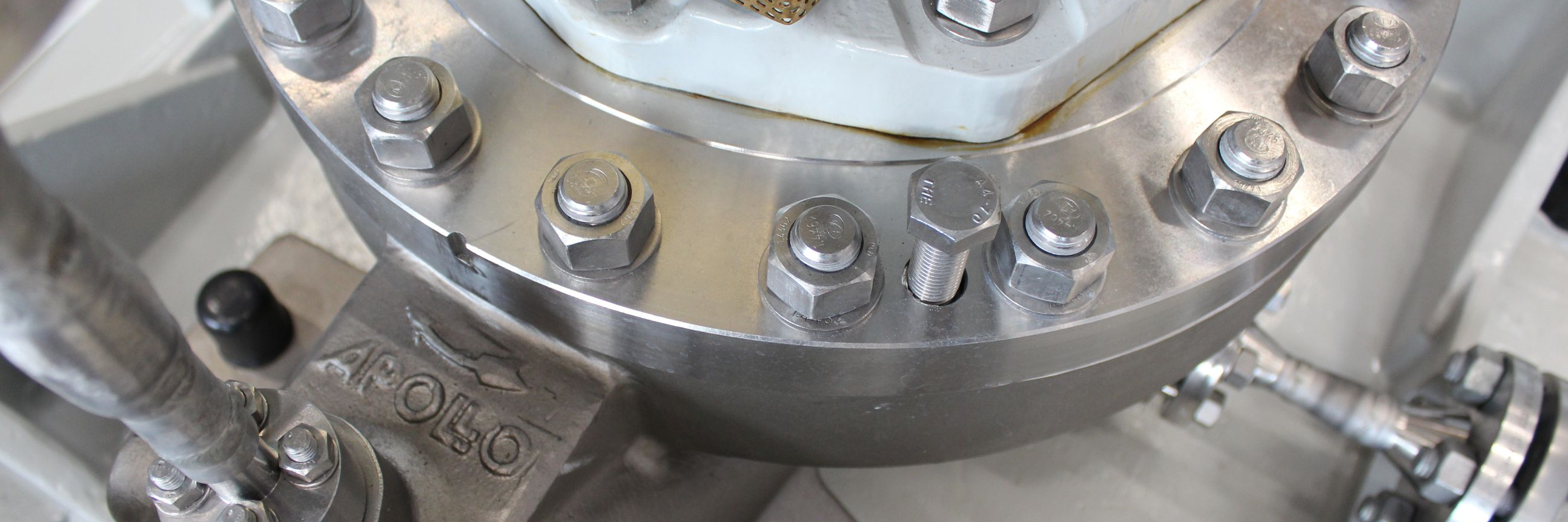

  • Detail of a KRI OH3 offshore pump with white painted support frame, brass touch protection, and duplex steel pump casing.

    Bild01 - KRI

  • Cutout of a KRIL Apollo pump, an inline pump in a low flow version.

    Bild02 - KRIL

  • View of the Apollo test bench on which a KRIL (API 610, OH3) inline process pump function test is being carried out.

    KRIL

A white symbolic image depicting a refinery with an oil tank, steel tower, and flame represents the refinery, oil, and gas industry. The background is blue.
A white symbolic image with a power plant and smokestack represents energy generation. The background is blue.
A white symbolic image of an offshore oil rig represents the offshore industry. The background is blue.
A blue symbol with a chemical compound represents the chemical industry.
A blue symbol image with factories symbolises general industry.

Vertical, single-stage, radially split process pump as inline version according to API 610 and ISO 5199. KRIL as a version for low capacity. The vertical inline pump is characterized by space-saving installation options.

 KRIKRIL
Q (m³/h)80045
H (m)270270
P (bar)5550
T (° C)+250+250

The process pump is used for pumping clean, cold, hot, and chemical liquids in the following applications

  • Gasprozesstechnik
  • Desalination Plants for Sea Water
  • Petrochemical Plants, Refineries
  • Chemical Industry/Process Engineering
  • Environmental and Offshore Engineering, etc

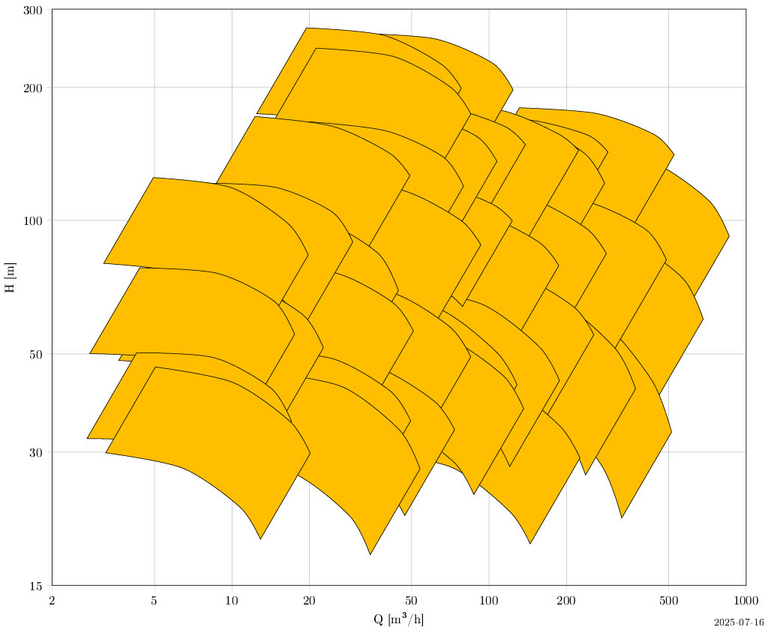

KRI: OH3 pump - characteristic curve field visualizes pressure-volume flow relation at variable speed.
KRI - characteristic curve
KRIL: OH3 pump with characteristic curve field for hydraulic power and delivery head.
KRIL - characteristic curve
  • Q = 800 m³/h
  • H = 270 m
  • P = 55 bar
  • T = +250 °C
KRI quarter cut
  • vertical, single-stage, radially split process pump as inline version
  • KRIL as Version for low capacity
  • with grease or oil lubrication
  • discharge and suction nozzle are of inline arrangement
  • cast steel
  • titanium
  • chrome steel
  • austenitic steel
  • duplex steel, super-duplex steel
  • special alloys
