TL (BB5) - multi-stage, radially split barrel pump as inline version for high pressures

  • Isolated image of a TL (BB5 with rotor in line) pump unit with drive motor, base frame, and coupling guard, painted in Apollo blue.

    TL01

  • Close-up of a massive boiler feed pump from Apollo during assembly in the production hall with a frontal view of the barrel housing, painted gray-silver, base frame and motor painted blue.

    TL02

  • Close-up of an API 610, BB5 (rotor in line) pump skid in Apollo's production hall, awaiting final inspection; the pump housing is wrapped in insulation matting; piping and electrical cabling for the lubricating oil system, monitoring system, and cooling system are mounted on the pump unit.

    TL03

Multistage, horizontal high-pressure pump in barrel design, as in-line version. The process pump is particularly suitable for big volumetric flow rates and has a modular design for the best possible adaptation to customers’ requirements and low operating costs.

Operation limits TL

Q (m³/h) 1 800
H (m) 3 200
P (bar) 350
T (° C) + 400

Application Industries

A white symbolic image depicting a refinery with an oil tank, steel tower, and flame represents the refinery, oil, and gas industry. The background is blue.
A white symbolic image with a power plant and smokestack represents energy generation. The background is blue.
A white symbolic image of an offshore oil rig represents the offshore industry. The background is blue.
A white symbolic image showing a plant with three leaves around which an electrical cable with a plug is wrapped represents the renewable energy industry. The background is blue.
A blue symbol with a chemical compound represents the chemical industry.
The fertiliser industry is represented by a blue symbol showing a pile of earth with a plant growing out of it and fertiliser spread over it.
A white symbolic image with a drop of water and wavy lines represents the water industry. The background is blue.
A blue symbol image with factories symbolises general industry.

Based on the excellent hydraulic characteristics and the high reliability in critical applications, the pumps are suitable for applications such as:

  • applications in the oil and gas industry
  • offshore applications
  • booster applications in all industrial branches
  • water injection onshore and offshore
  • boiler feed water applications

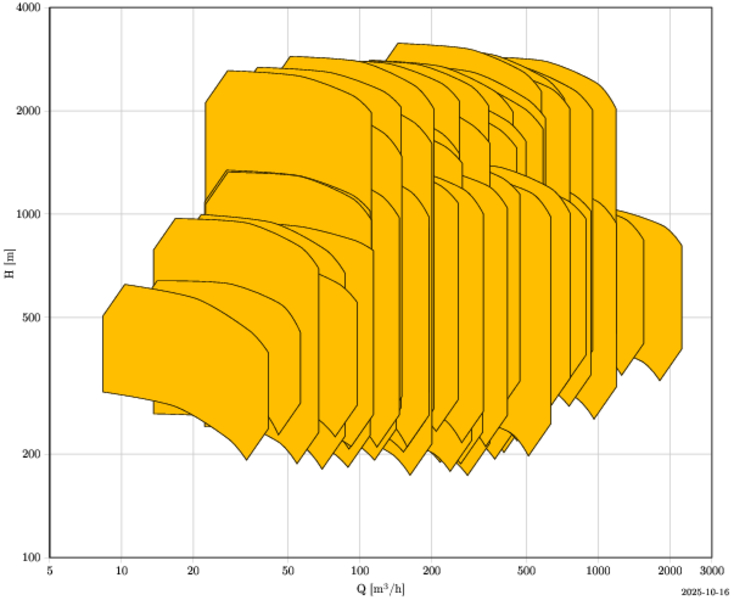

TL: BB5 pump with characteristic curve field for performance characteristics and volume flow.
TL - characteristic curve
  • Q= 1800 m³/h
  • H= 2800 m
  • P= 350 bar
  • T= +400 °C
BB5 TL
  • inline arrangement of impellers
  • axial thrust compensation by means of balancing piston ensures reliable operation for wide application range
  • version of bearings: antifriction bearings or slide bearings
  • the “pull-out” version ensures maximum serviceability. Barrel remains in the piping. The pump as an insert unit can be dismantled and serviced.
  • very short standstill time during maintenance work thanks to cartridge design
  • 1st stage designed as NPSH stage
  • sealing area designed according to API 610 / 682
  • centerline-supported
  • single impeller support depending on design
  • grey cast iron
  • ductile cast iron, ADI materials
  • cast steel
  • 12 % chromium steel
  • austenitic steel
  • special alloys
  • Standard Version
    Radial bearings: antifriction bearings
    Axial bearings: antifriction bearings
    Ring oil lubrication
  • Variant
    Radial bearings: slide bearings
    Axial bearings: antifriction bearings
    Ring oil lubrication

  • Variant
    Radial bearings: slide bearings
    Axial bearings: slide bearings
    Pressure oil lubrication
    Type series: TL / TG
160 bar
250 bar
350 bar

Weitere Pumpen der Bauart

TG (BB5)

The TG (BB5) high-pressure barrel pump back-to-back version, to API 610, is the most reliable option when operating under extreme conditions.

read more
