TG (BB5) - multi-stage, radially split barrel pump as back-to-back version for high pressures

  • In the shipping hall, with light gray concrete walls in the background, a pump unit with a BB5 API 610 process pump is ready for packaging.

    TG02

  • Top view of a BB5 pump unit that is piped and wired for the lubricating oil system, monitoring system, and cooling system; the pump housing is painted dark blue.

    TG01

  • A BB5 barrel pump skid on the Apollo test bench with all relevant connections connected for realistic functional testing. Three technicians stand in front of the skid and consult with each other.

    TG03

A white symbolic image depicting a refinery with an oil tank, steel tower, and flame represents the refinery, oil, and gas industry. The background is blue.
A white symbolic image with a power plant and smokestack represents energy generation. The background is blue.
A white symbolic image of an offshore oil rig represents the offshore industry. The background is blue.
A blue symbol with a chemical compound represents the chemical industry.
A white symbolic image showing a plant with three leaves around which an electrical cable with a plug is wrapped represents the renewable energy industry. The background is blue.

Multistage, horizontal high-pressure pump in barrel design, as back-to-back version. The process pump is particularly suitable for big volumetric flow rates and has a modular design for the best possible adaptation to customers’ requirements and low operating costs.

 TG
Q (m³/h)1 800
H (m)4 200
P (bar)450
T (° C)+420

Based on the excellent hydraulic characteristics and the high reliability in critical applications, the pumps are suitable for applications such as:

  • applications in the oil and gas industry
  • offshore applications
  • booster applications in all industrial branches
  • water injection onshore and offshore
  • boiler feed water applications

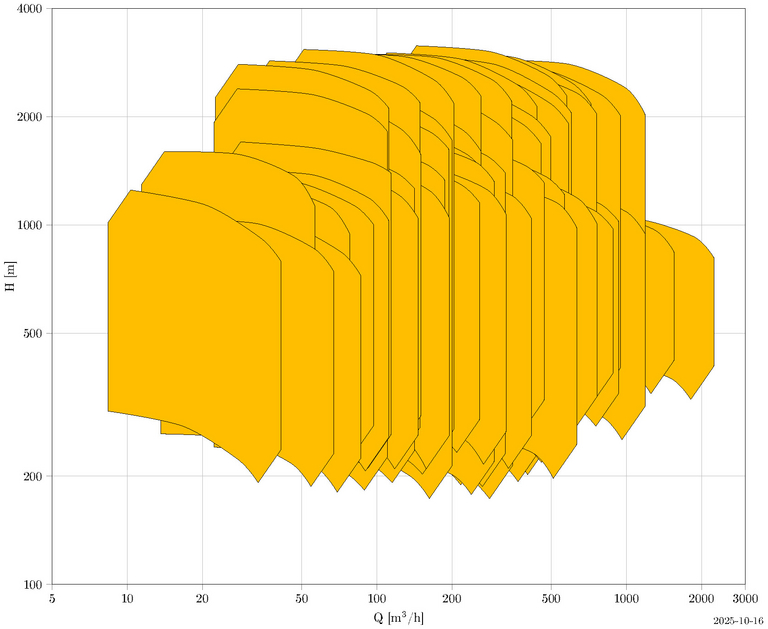

TG: BB5 pump - characteristic curve field visualizes delivery head and efficiency.
TG - characteristic curve
  • Q= 1 800 m³/h
  • H= 4 200 m
  • P= 450 bar
  • T= +420 °C
TG quarter cut
  • the “pull-out” version ensures maximum serviceability. Barrel remains in the piping. The pump as an insert unit can be dismantled and serviced.
  • very short standstill time during maintenance work thanks to cartridge design
  • 1st stage designed as NPSH stage
  • sealing area designed according to API 610 / 682
  • centerline-supported
  • single impeller support depending on design
  • API 610 requires stable rotor dynamics even on double clearance - a „back-to-back“ arrangement with bearing in the middle fulfills this requirement
  • suitable for high number of stages and high speeds even on small viscosity
  • small bearing loads by compensation of axial thrust
  • wear of casing wear rings has just very small influence upon axial thrust
  • pump is especially suitable for critical application cases and high speeds
  • grey cast iron
  • ductile cast iron, ADI materials
  • cast steel
  • 12 % chromium steel
  • austenitic steel
  • special alloys
TGDX Unit
  • Q= 700 m³/h
  • H= 4200 m
  • P= 450 bar
  • T= +360 °C

  • version for speeds up to 6000 r.p.m.
  • as a result of speed increase reduction of number of stages and investment cost
  • special rotor design for high speeds
  • exact analysis of critical speeds ensures stable runability in the whole operating range
  • radial-axial slide bearings with forced oil lubrication
  • Standard Version
    Radial bearings: antifriction bearings
    Axial bearings: antifriction bearings
    Ring oil lubrication
  • Variant
    Radial bearings: slide bearings
    Axial bearings: antifriction bearings
    Ring oil lubrication

  • Variant
    Radial bearings: slide bearings
    Axial bearings: slide bearings
    Pressure oil lubrication
    Type series: TL / TG
160 bar
250 bar
350 bar
