HPV / HPVX (VS1) - vertical, multistage submerfed pump with suspended NPSH impeller

  • A vertical Apollo HPVX VS1 pump hangs from the crane's bearing lantern, with its suction housing resting on the ground.

    HPV01

A vertical, multistage high-pressure submersible pump according to API 610 / ISO 5199. The vertical process pumps are characterized by high reliability in operation and very good NPSH values. The first impeller of the HPVX pump type is suspended.

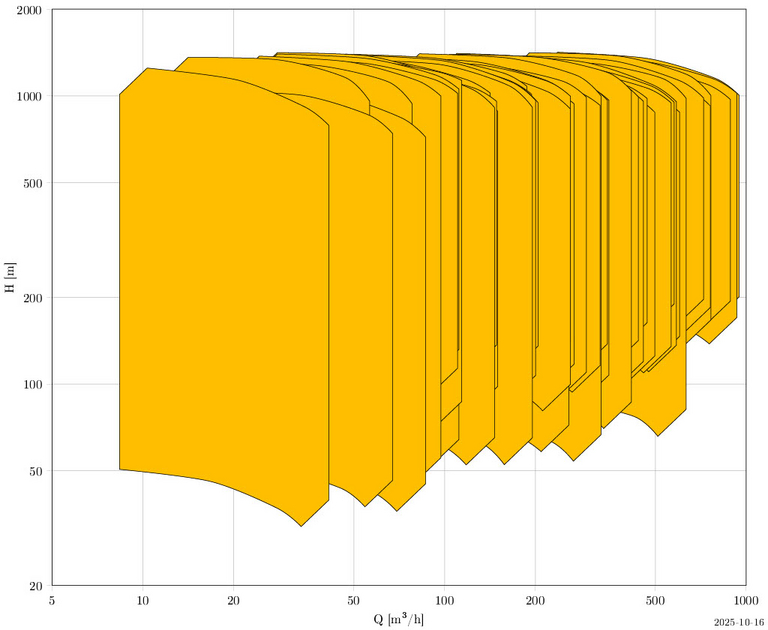

Operation limits HPV / HPVX

Q (m³/h) 600
H (m) 600
P (bar) 63
T (° C) + 180

Application Industries

A white symbolic image depicting a refinery with an oil tank, steel tower, and flame represents the refinery, oil, and gas industry. The background is blue.
A white symbolic image with a power plant and smokestack represents energy generation. The background is blue.
A white symbolic image of an offshore oil rig represents the offshore industry. The background is blue.
A white symbolic image showing a plant with three leaves around which an electrical cable with a plug is wrapped represents the renewable energy industry. The background is blue.
A blue symbol with a chemical compound represents the chemical industry.
The fertiliser industry is represented by a blue symbol showing a pile of earth with a plant growing out of it and fertiliser spread over it.
A blue symbol image with factories symbolises general industry.

The vertical submersible pumps are designed for pumping liquids in critical processes. The process pumps are used to pump clean, cold, hot, and chemical fluids in

  • offshore applications
  • as booster and forwarding pumps
  • liquefied gas applications
  • crude oil applications
  • pumping of condensate
  • water injection
VS1 HPV
  • according to API 610, type VS1
  • vertical multistage radial centrifugal pump with suspended NPSH impeller, depending on design length
  • axial thrust compensation due to balance piston
  • liquid-lubricated slide bearings in the pump
  • upper bearing: antifriction bearing or combination of axial-radial slide bearings
  • grey cast iron
  • ductile cast iron, ADI materials
  • cast steel
  • 12 % chromium steel
  • austenitic steel
  • special alloys
