GMVB - multistage, high-pressure centrifugal pump as space-saving vertical design

  • Section of a GMVB - multistage high-pressure centrifugal pumps in sectional casing design with closed impellers, space-saving vertical design.

    GMVB01

  • Water system with Apollo vertical dry-installed high-pressure centrifugal pump of pump type GMVB.

    GMVB03

Vertical multi-stage high-pressure centrifugal pumps of the GMVB series are of sectional casing type with closed-type impellers and meet all requirements of DIN 5199.

Operation limits GMVB

Q (m³/h) 550
H (m) 550
P (bar) 64
T (° C) + 180

Application Industries

A white symbolic image with a power plant and smokestack represents energy generation. The background is blue.
A white symbolic image showing a plant with three leaves around which an electrical cable with a plug is wrapped represents the renewable energy industry. The background is blue.
A white symbolic image of an offshore oil rig represents the offshore industry. The background is blue.
A blue symbol with a chemical compound represents the chemical industry.
The fertiliser industry is represented by a blue symbol showing a pile of earth with a plant growing out of it and fertiliser spread over it.
A white symbolic image with a drop of water and wavy lines represents the water industry. The background is blue.
A blue symbol image with factories symbolises general industry.

Vertical high-pressure pumps of the GMVB series for highest requirements in:

  • water supply systems
  • booster stations
  • power plants
  • heating systems
  • recirculation and condensate systems
  • irrigation plants
  • tank farms

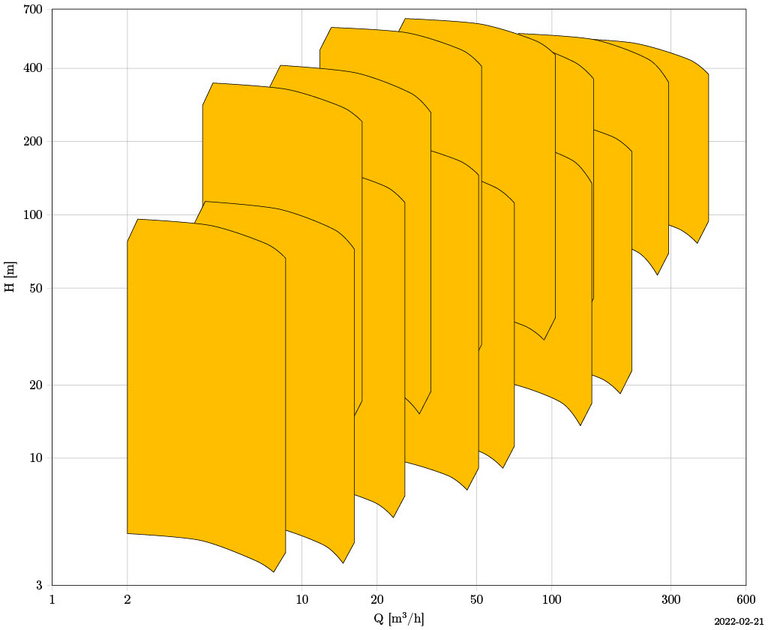

GMVB: Dry-installed vertical pump - characteristic curve diagram illustrates pressure curve and flow rate.

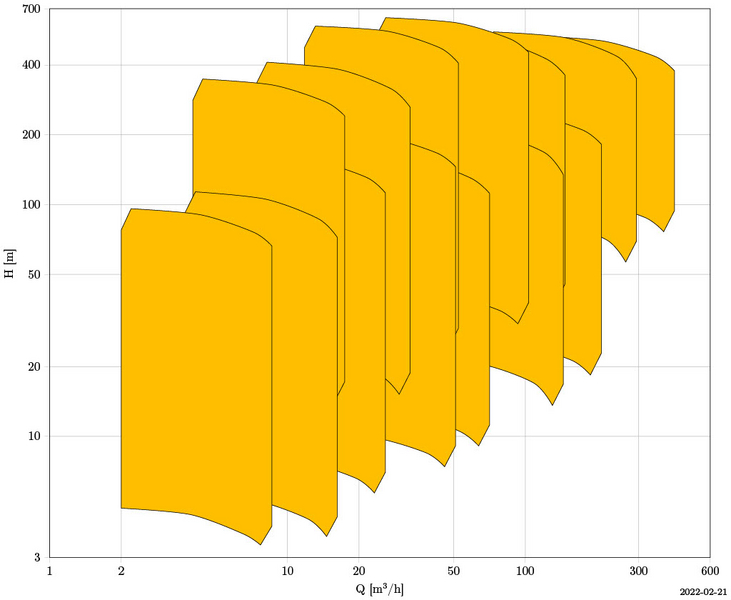

GMVB - characteristic curve
  • multistage, vertical centrifugal high-pressure pumps
  • sectional type of casing with closed impeller
  • axial thrust compensation by means of single-impeller balance or by means of balance piston
  • stationary bearings: pair of angular ball bearings, for absorbing of remaining axial thrust
  • loose bearing: liquid-lubricated slide bearing
  • bearing lubrication: oil or grease
  • oil lubrication with or without cooling
  • cast iron
  • cast steel
  • 12% chromium steel
  • austenitic steel
  • duplex steel, super-duplex steel
  • special alloys

Weitere Pumpen der Bauart

This is a section of the blue-painted pump housing of a vertically dry-installed Apollo pump type GLVB.

GLVB

Vertical, multi-stage centrifugal pumps of the GLVB series in sectional casing design with closed impellers for dry installation.
