GLVB - vertikale, mehrstufige Gliederpumpe für Trockenaufstellung

  • This is a section of the blue-painted pump housing of a vertically dry-installed Apollo pump type GLVB.

    GLVB01

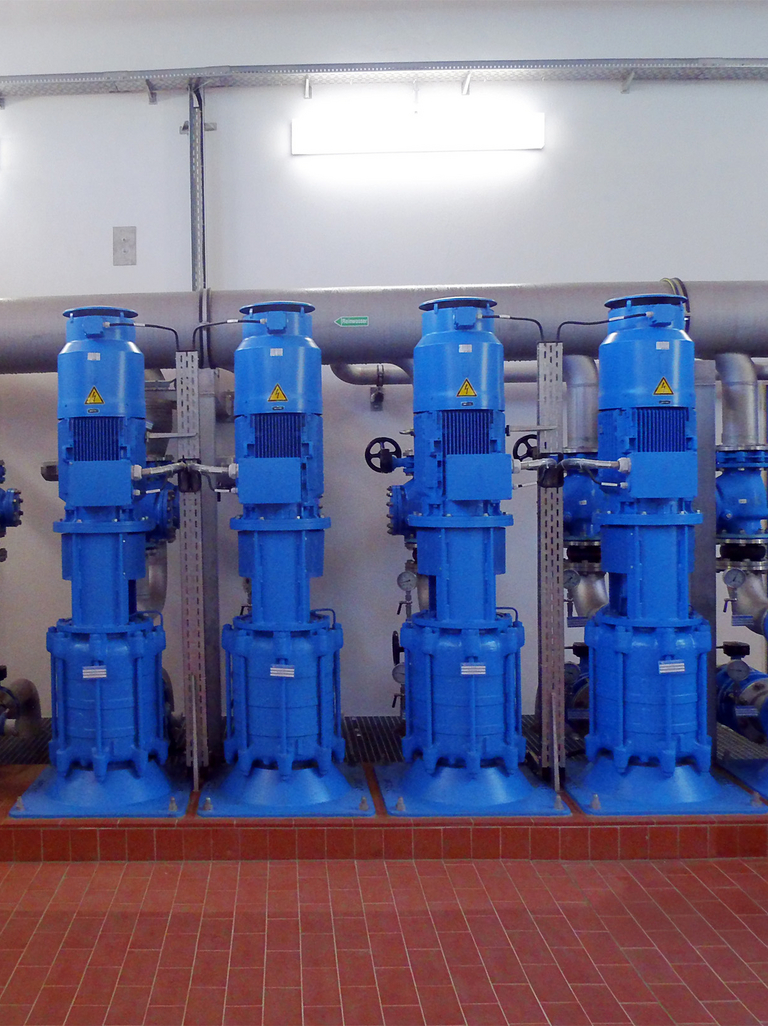

  • Frontal view of a water system with red floor tiles and blue-painted vertical, dry-installed Apollo type GLVB pumps.

    GLVB02

Vertical multi-stage centrifugal pumps of the GLVB series are of sectional casing type with closed-type impellers and meet all requirements of DIN 5199.

Operation limits GLVB

Q (m³/h) 500
H (m) 220
P (bar) 25
T (° C) + 140

Application Industries

A white symbolic image with a power plant and smokestack represents energy generation. The background is blue.
A white symbolic image showing a plant with three leaves around which an electrical cable with a plug is wrapped represents the renewable energy industry. The background is blue.
A white symbolic image depicting a refinery with an oil tank, steel tower, and flame represents the refinery, oil, and gas industry. The background is blue.
A white symbolic image of an offshore oil rig represents the offshore industry. The background is blue.
A blue symbol with a chemical compound represents the chemical industry.
The fertiliser industry is represented by a blue symbol showing a pile of earth with a plant growing out of it and fertiliser spread over it.
A white symbolic image with a drop of water and wavy lines represents the water industry. The background is blue.
A blue symbol image with factories symbolises general industry.

Vertical multi-stage centrifugal pumps of the GLVB series are designed for pumping pure or slightly turbid liquids without abrasive ingredients. A choice of materials and various shaft sealing systems render this kind of pump suitable for use on a wide range of applications such as:

  • water supply installations
  • water pressure booster systems
  • power stations
  • heating systems
  • recirculation and condensate systems
  • overhead irrigation
  • tank farms
GLVB: Dry-installed vertical pump - characteristic curve field for pressure and flow characteristics.
GLVB - characteristic curve
  • vertical, multistage centrifugal pump
  • sectional type of casing
  • closed impellers
  • standard version: discharge branch over the suction branch
  • combination of impellers of various diameters for optimum adaptation.
  • optionally: suction impeller with increased inlet diameter in 1st stage for improvement of sustaining pressure
  • pair of angular ball bearings of tandem arrangement
  • liquid-lubricated slide bearings with forced lubrication
  • Cast iron
  • Ductile iron
  • Cast steel
  • Stainles steel
