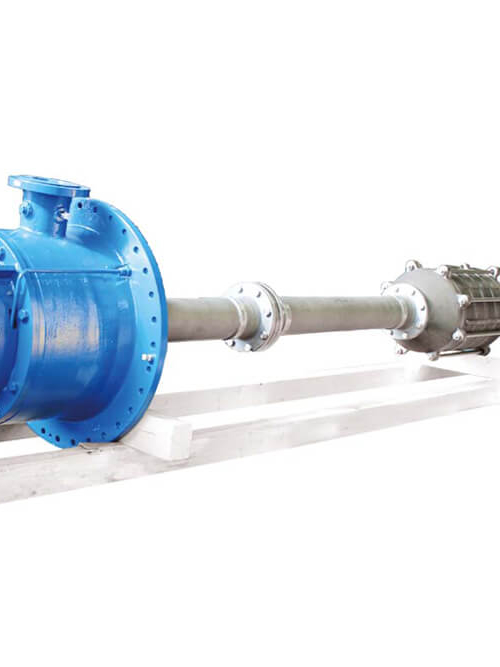

  • Section of a horizontal tank suspension pump from Apollo, type GLV.

    GLV01

  • Tank installation pump for areas with explosion hazard during assembly at Apollo, with a view of the pump casing and foot valve.

    GLV03

  • Vertical multistage sectional centrifugal pumps during assembly in the Apollo production hall.

    GLV04

A white symbolic image depicting a refinery with an oil tank, steel tower, and flame represents the refinery, oil, and gas industry. The background is blue.
A white symbolic image with a power plant and smokestack represents energy generation. The background is blue.
A white symbolic image of an offshore oil rig represents the offshore industry. The background is blue.
A blue symbol with a chemical compound represents the chemical industry.
The fertiliser industry is represented by a blue symbol showing a pile of earth with a plant growing out of it and fertiliser spread over it.
A white symbolic image with a drop of water and wavy lines represents the water industry. The background is blue.
A white symbolic image showing a plant with three leaves around which an electrical cable with a plug is wrapped represents the renewable energy industry. The background is blue.
A blue symbol image with factories symbolises general industry.

Pumps of the GLV / GMV series are multistage, vertical tank installation pumps for wet well installation with closed impeller.

 GLV / GMV
Q (m³/h)500
H (m)250
P (bar)25
T (° C)110

Equipped with special safety devices these pumps fulfill the requirements for pumping explosive and toxic
liquids. As standard types the pumps are suited for pumping condensate or water. Main application:

  • civil and military large tank farms
  • chemical industry and process technology
  • condensate installations
  • pumping service and drinking water out of reservoirs
GLV: Vertical, multi-stage pump with characteristic curve field for power output over several stages.
GLV - characteristic curve
  • Q = 500 m³/h
  • H = 250 m
  • P = 25 bar
  • T = 110 °C
  • multistage, vertical tank installation pump of sectional casing design
  • closed impellers
  • lantern with flanged motor
  • power transmission via intermediate shafts, which are driven in liquid-lubricated slide bearings, enable high installation depth
  • bearings on drive side: oil or grease lubricated antifriction bearings
  • Cast iron
  • Cast steel
  • Stainles steel
  • Red bronze
  • Special materials
