GLA - self-priming, multistage sectional pump

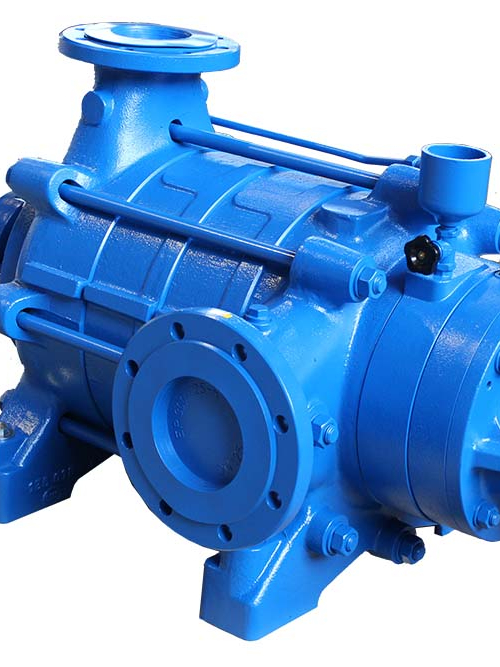

  • Section of the blue-painted pump housing of an Apollo pump type GLA.

    GLA01

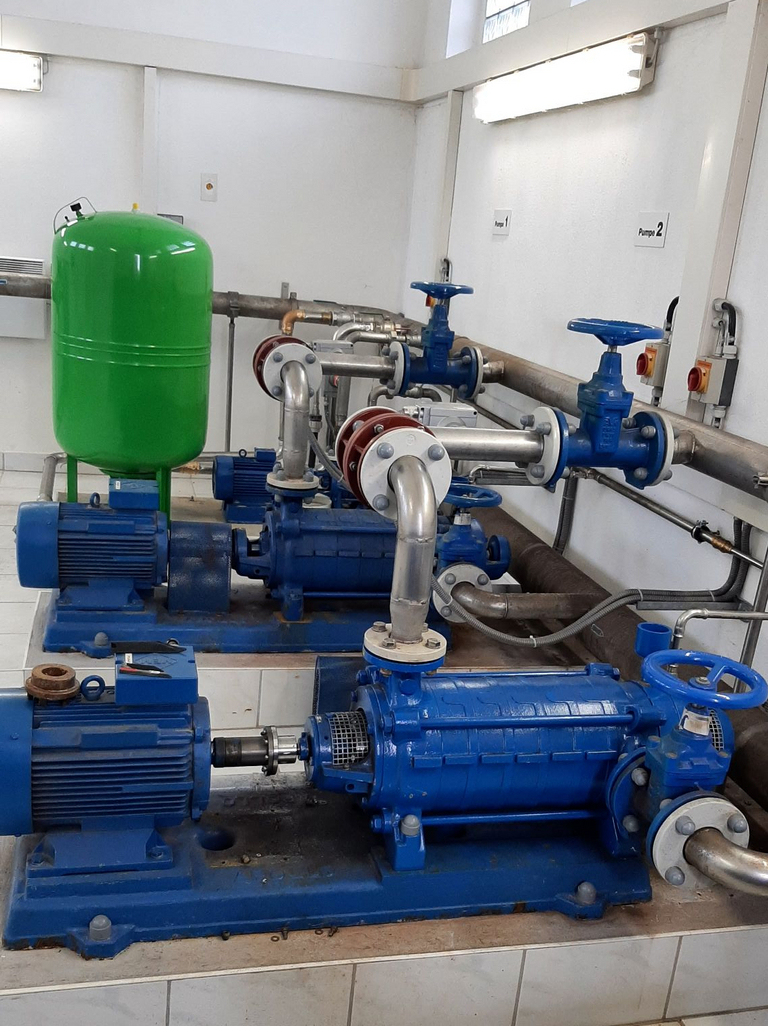

  • Side view of two self-priming, multi-stage centrifugal pumps of the type GLA from Apollo in a white-tiled pressure booster system.

    GLA02

  • View of a water system with four horizontal, self-priming, multi-stage sectional pumps from Apollo, type GLA.

    GLA03

GLA is a complete series of self-priming pumps, a high-efficiency vacuum pump being integrated into the pump. These horizontal centrifugal pumps can be supplied as complete units with baseplate or base frame and motor acc. to ISO 5199.

Operation limits GLA

Q (m³/h) 200
H (m) 180
P (bar) 25
T (° C) + 90

Application Industries

A white symbolic image with a power plant and smokestack represents energy generation. The background is blue.
A white symbolic image showing a plant with three leaves around which an electrical cable with a plug is wrapped represents the renewable energy industry. The background is blue.
A blue symbol with a chemical compound represents the chemical industry.
The fertiliser industry is represented by a blue symbol showing a pile of earth with a plant growing out of it and fertiliser spread over it.
A white symbolic image with a drop of water and wavy lines represents the water industry. The background is blue.
A blue symbol image with factories symbolises general industry.

Multi-stage centrifugal pumps are suited for pumping clean and slightly turbid liquids. A wide range of materials and shaft sealing systems permits application in

  • Water supply systems
  • Booster stations
  • Power stations
  • Heating stations
  • Circulation and condensate stations
  • Irrigation stations
  • Tank farms

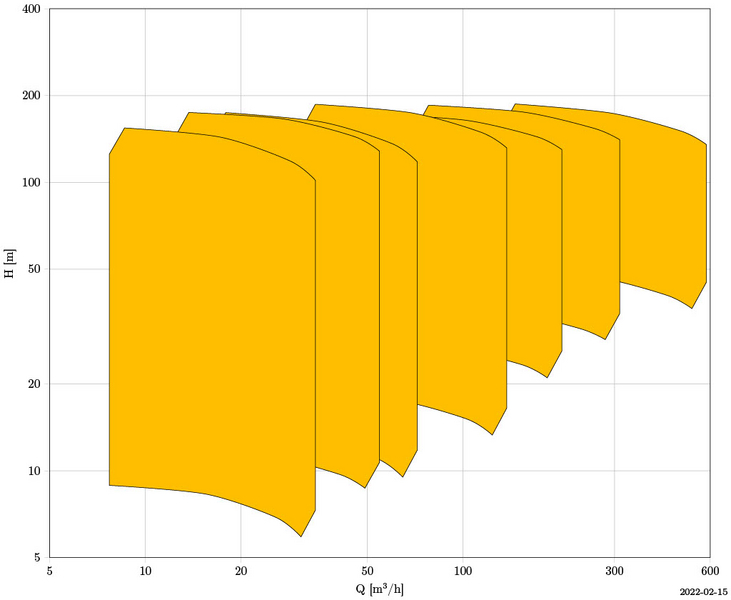

GLA: Self-priming pump with characteristic curve field for suction capacity and delivery rate.
GLA - characteristic curve
  • multistage, horizontal centrifugal pumps
  • self-priming pump, i. e. a high-grade vacuum pump is integrated in the pump
  • sectional casing version with closed impeller
  • combination of impellers of different diameters for optimum adaptation
  • antifriction bearings (grease lubricated)
  • oil lubrication on demand
  • Cast iron
  • Cast steel
  • Stainles steel
  • Red bronze
