BB3 - AMG

Horizontal, multistage, axially split high-pressure pumps between-bearings version

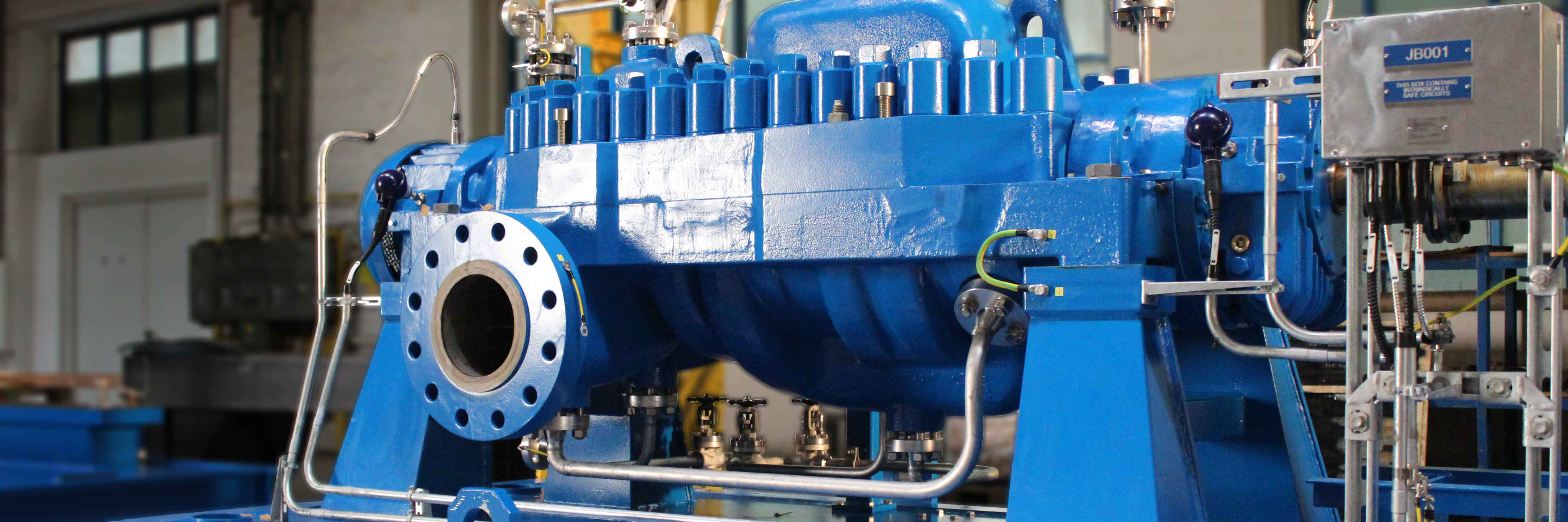

  • The AMG/BB3 pump demonstrates its robust design with a compact housing and clean lines. The two suction and pressure connections are visible, enabling efficient pumping of liquids in industrial applications.

    AMG01

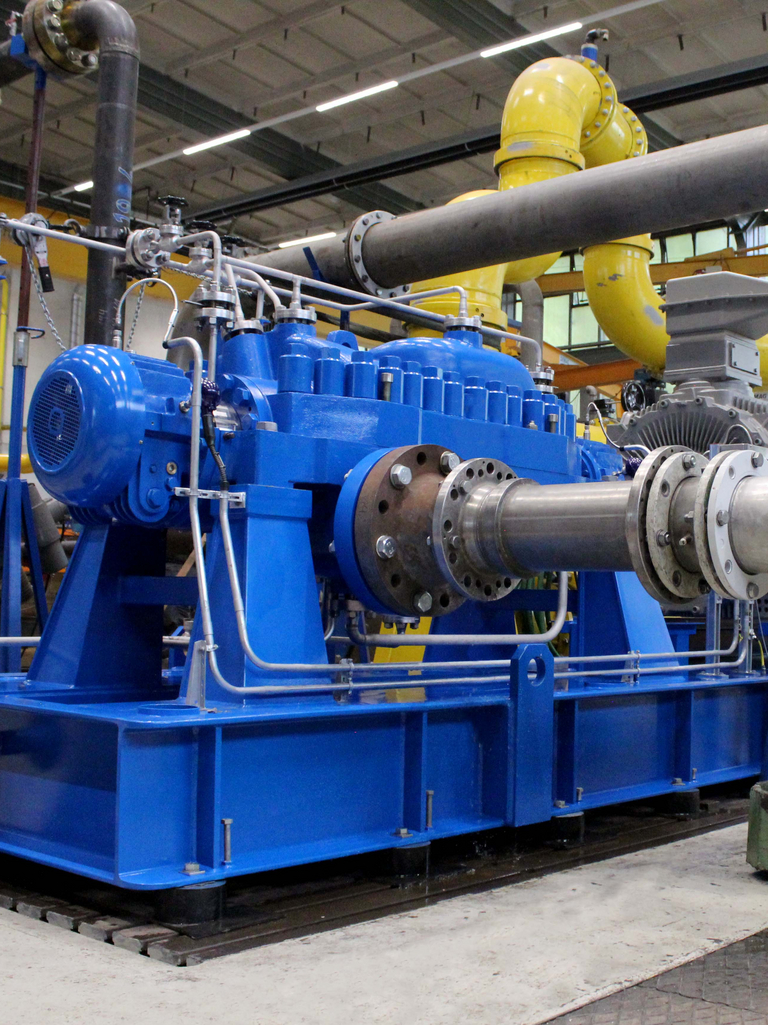

  • A close-up of the AMG API 610 Type BB3 pump on Apollo's test bench, demonstrating the high precision and technical excellence of our product.

    AMG02

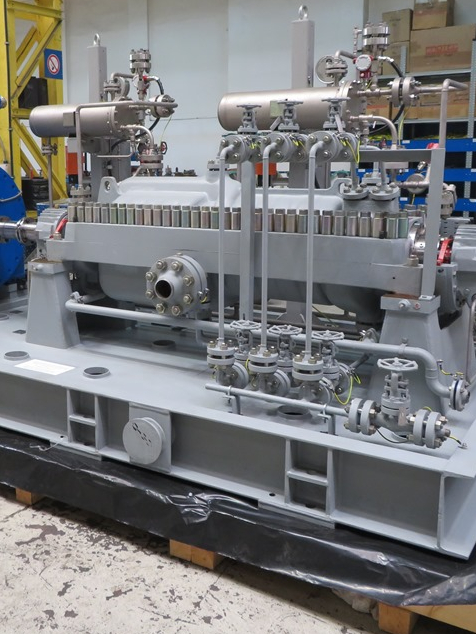

  • The AMG pump unit is in the final stages of production in the Apollo Gößnitz GmbH manufacturing hall and is about to be delivered.

    AMG03

The Apollo AMG process pump, which complies with API 610 Type BB3, is a horizontal, multistage, high-pressure pump that provides exceptional stability and reliability. Designed for demanding applications in the oil and gas industry and petrochemical plants, it is ideal for use in critical operating environments. The back-to-back rotor design minimises axial thrust, and the optimised rotor dynamics ensure safe operation at high speeds. This guarantees efficiency and performance in critical operating environments.

Operation limits AMG

Q (m³/h) 3 200
H (m) 2 200
P (bar) 265
T (° C) + 200

Application Industries

A blue symbol with a chemical compound represents the chemical industry.
The fertiliser industry is represented by a blue symbol showing a pile of earth with a plant growing out of it and fertiliser spread over it.
A blue symbol image with factories symbolises general industry.

Thanks to their excellent hydraulic characteristics, perfectly optimised performance range and modern structural design, these pumps are suitable for a variety of applications, including:

  • applications in the oil and gas industry
  • refinery applications
  • offshore applications
  • booster applications in all industrial sectors
  • water injection onshore and offshore
  • boiler feed water applications
Characteristic curve of a BB3 pump: A detailed representation of the performance characteristics used to analyse the efficiency and operating parameters of this specific pump design. The information enables precise design and adaptation of the pump to specific operating conditions in order to ensure optimum performance.
  • Q= 3200 m³/h
  • H= 2200 m
  • P= 265 bar
  • T= +200°C

Axially split high-pressure pump with centre support on both sides: Offers increased stability and service life.

Counter-rotating impellers: Ensure optimum axial thrust compensation and reduce mechanical stress.

Specialised NPSH impeller in the first stage: Optimises cavitation characteristics and improves pump performance.

Bearing design: Available with roller or plain bearings for flexible use and increased operating comfort.

Reduced downtime: The axially split housing allows maintenance and inspection work to be carried out while the lower part remains on the pipeline; dismantling of the coupling is not necessary.

  • cast steel
  • chrome steel
  • austenitic steel
  • Duplex and super duplex steel
  • special alloys according to NORSOK, NACE
  • Standard Version
    Radial bearings: antifriction bearings
    Axial bearings: antifriction bearings
    Ring oil lubrication
  • Variant
    Radial bearings: slide bearings
    Axial bearings: antifriction bearings
    Ring oil lubrication

  • Variant
    Radial bearings: slide bearings
    Axial bearings: slide bearings
    Pressure oil lubrication
    Type series: AMG
