VS1 - HPV / HPVX

  • VS1-HPVX.jpg

    HPV01


A vertical, multistage high-pressure submersible pump according to API 610 / ISO 5199. The vertical process pumps are characterized by high reliability in operation and very good NPSH values. The first impeller of the HPVX pump type is suspended.

 HPV
Q (m³/h)600
H (m)600
P (bar)63
T (° C)+180

HPV / HPVX

The vertical submersible pumps are designed for pumping liquids in critical processes. The process pumps are used to pump clean, cold, hot, and chemical fluids in

  • offshore applications
  • as booster and forwarding pumps
  • liquefied gas applications
  • crude oil applications
  • pumping of condensate
  • water injection
  • Q= 600 m³/h
  • H= 600 m
  • P= 63 bar
  • T= + 180 °C
VS1 HPV
  • according to API 610, type VS1
  • vertical multistage radial centrifugal pump with suspended NPSH impeller, depending on design length
  • axial thrust compensation due to balance piston
  • liquid-lubricated slide bearings in the pump
  • upper bearing: antifriction bearing or combination of axial-radial slide bearings
  • grey cast iron
  • ductile cast iron, ADI materials
  • cast steel
  • 12 % chromium steel
  • austenitic steel
  • special alloys

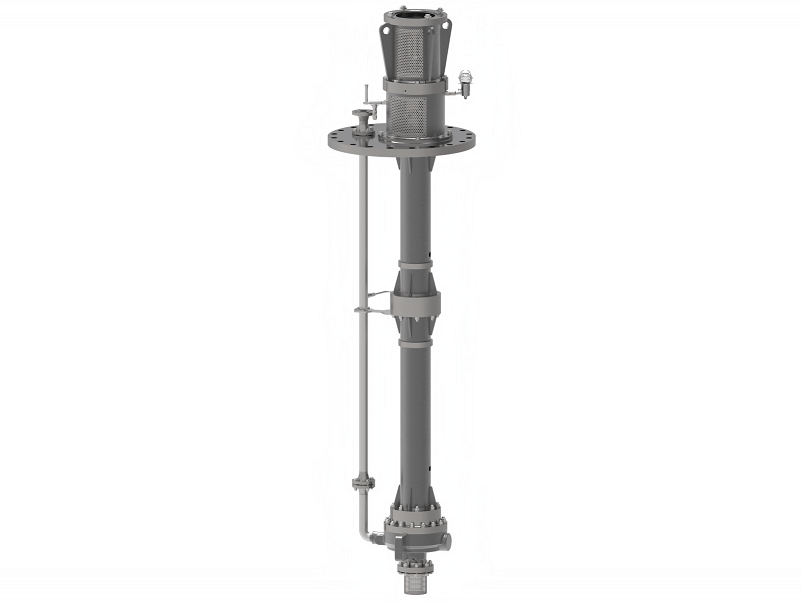

VS4 - KRHV
