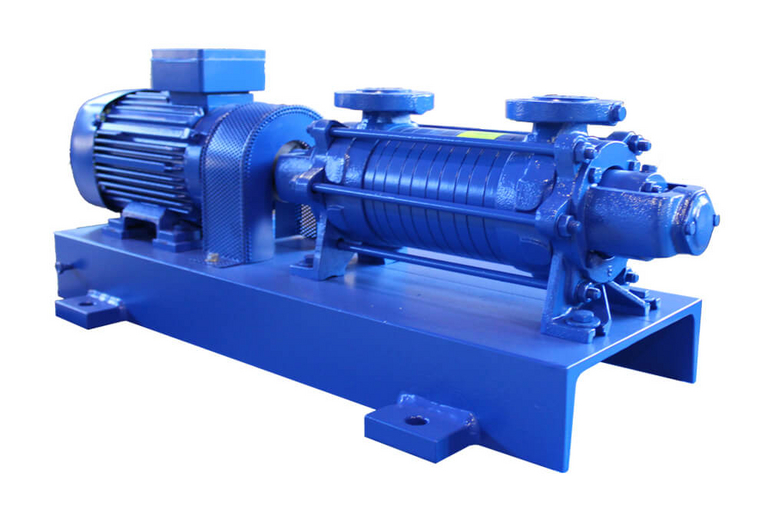

KSD/K

Range of application

  • liquefied gas
  • power-plant engineering
  • pumping of clean and turbid liquids without abrasive matter
  • chemical and petrochemical industry
  • general process engineering
  • mechanical engineering and apparatus construction

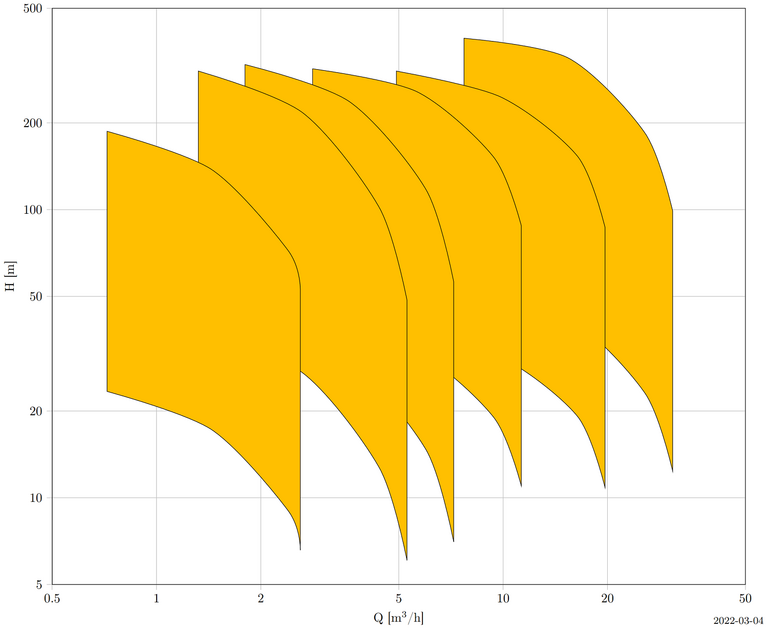

Operating data, Characteristic Curves

  • Q = 35 m³/h
  • H = 340 m
  • P = 40 bar
  • T = 250 °C

Design features and properties

  • horizontal, self-priming side-channel pump with the ability to pump gas together with the liquid, sectional casing design according to DIN EN 734
  • compact design
  • good suction behaviour
  • suction and discharge branches are positioned radially vertically to the top
  • round flange version, connection dimensions according to DIN EN 1092-1 / PN40
  • two external grease lubricated grooved ball bearings
  • stuffing box single/double
  • mechanical seal according to DIN EN 12756
  • double-acting mechanical seal

Materials

  • ductile iron
  • grey cast iron
  • stainless steel

KCDM - Hermetically sealed version
