HPTV (VS6) - vertical, multi-stage high-pressure pump of can-type design

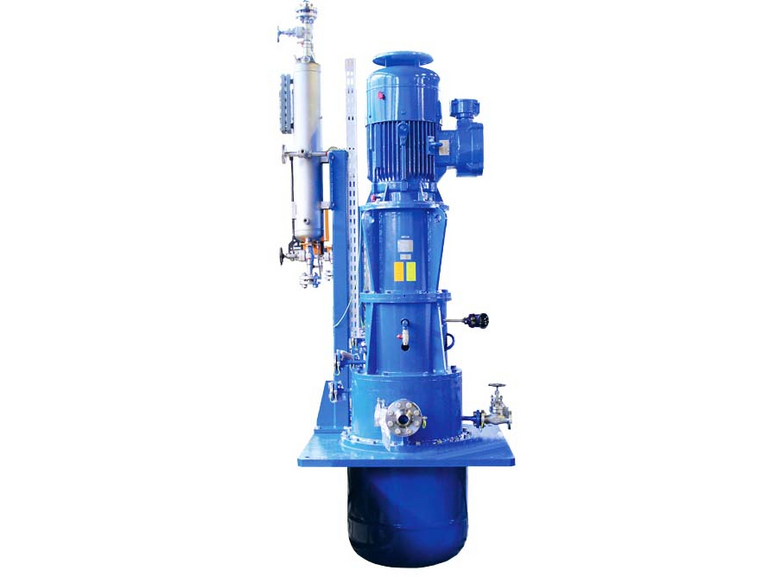

  • Detail of an Apollo vertical VS6 pump with pot, motor, TS system, and other pump accessories. Everything is painted blue.

    HPTV01

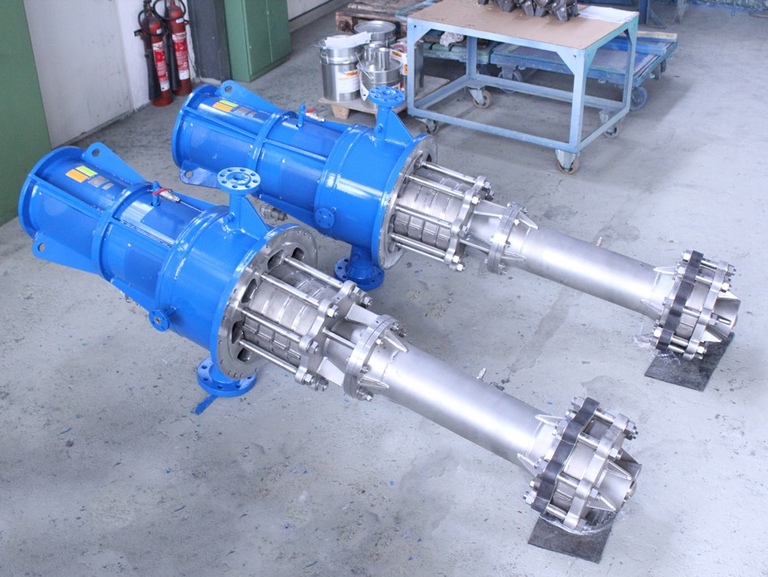

  • There are two vertical HPTV (VS6) condensate pumps in the Apollo production hall.

    HPTV02

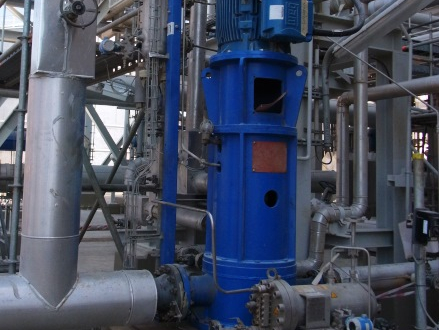

  • An Apollo vertical process pump type HPTV (VS6) is installed on a concrete foundation in a fertilizer plant with many pipes and lines for liquids and gases.

    HPTV03

A vertical, multistage high-pressure pump of can-type design according to API 610 / ISO 5199. The vertical process pumps are characterized by high reliability in operation and very good NPSH values.

Operation limits HPTV

Q (m³/h) 550
H (m) 1 400
P (bar) 40 / 140
T (° C) -140 / +260

Application Industries

A white symbolic image depicting a refinery with an oil tank, steel tower, and flame represents the refinery, oil, and gas industry. The background is blue.
A white symbolic image with a power plant and smokestack represents energy generation. The background is blue.
A white symbolic image of an offshore oil rig represents the offshore industry. The background is blue.
A white symbolic image showing a plant with three leaves around which an electrical cable with a plug is wrapped represents the renewable energy industry. The background is blue.
A blue symbol with a chemical compound represents the chemical industry.
The fertiliser industry is represented by a blue symbol showing a pile of earth with a plant growing out of it and fertiliser spread over it.
A blue symbol image with factories symbolises general industry.

The vertical high-pressure pumps are designed for pumping liquids in critical processes. The process pumps are used to pump clean, cold, hot, and chemical fluids in

  • offshore applications
  • as booster and forwarding pumps
  • liquefied gas applications
  • crude oil applications
  • pumping of condensate
  • water injection
  • vertical can-type design
  • axial thrust compensation due to balance piston
  • bearing design: antifriction bearings or slide bearings
  • NPSH Impeller as single-flow and double-flow version
  • grey cast iron
  • ductile cast iron, ADI materials
  • cast steel
  • 12 % chromium steel
  • austenitic steel
  • special alloys
